Procom Antena CXL 3-1LW

2.00 dari 5
(2 review pelanggan)

CXL 3-1LW

Unity-Gain, Omnidirectional Base Station Antenna for the International Aircraft Band

DESCRIPTION

  • CXL 3-1LW is a 0 dBd, vertically polarized, omnidirectional base station antenna for the 118 – 137 MHz civil aircraft band.
  • The antenna is a broad-banded ½ λ dipole design, and it is equipped with our type “LW” mast mount, which is a lightweight, multi-purpose, epoxy-coated aluminium mounting bracket with stainless steel fittings.

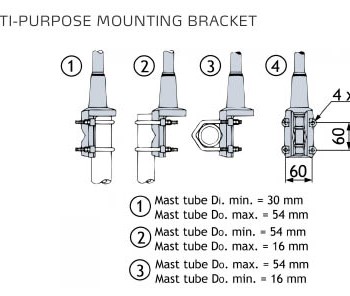

  • The antenna can be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter. Further, the construction of the mount makes it possible to lead the cable either along the inside or on the outside of the mast tube.
  • A conical glass fibre tube with very low wind-loading completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
  • To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
  • CXL 3-1LW is a vibration-proof, lightweight, slim-line, corrosion-resistant, modern style base station antenna.
SKU: CXL 3-1LW. Kategori: .

Deskripsi Produk

SPECIFICATIONS

ELECTRICAL
MODEL CXL 3-1LW
ANTENNA TYPE ½ λ coaxial dipol, broad-banded
FREQUENCY Covering: 118 – 137 MHz
IMPEDANCE Nom. 50 Ω

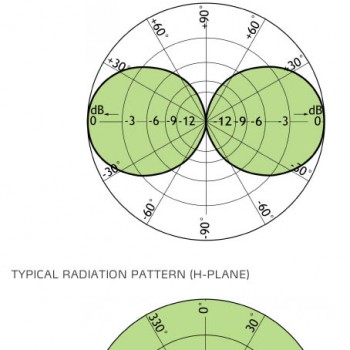

RADIATION Omnidirectional
POLARIZATION Vertical
GAIN 2 dBi 0 dBd
BANDWIDTH 19 MHz
SWR ≤ 1.75
MAX. POWER 150 W
ANTISTATIC PROTECTION All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
TEMP. RANGE -40° C → +70° C
CONNECTOR N-female
WIND SURFACE 0.0162 m²
WIND LOAD 25 N @ 175 km/h
COLOUR Marine white
MATERIALS Radome: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant
aluminium, epoxy-coated
TOTAL HEIGHT Approx. 1.5 m
WEIGHT Approx. 0.80 kg
MOUNTING On 16 – 54 mm dia. mast tube
