| General – All units |
AM 25 kHz |
AM 8,33 kHz |
AM MSK |
D8PSK |
| Frequency range |
118-137 MHz (118-156 MHz optional) |
| RF Modes |
6K80A3EJN |
5K00A3EJN |
13KOA2D |
14KOG1DE |
| Keying time |
< 5ms |
< 5ms |
< 5ms |
< 500uSec |
| Bit rate |
|
|
2,4 kbit/s |
|
| Frequency response |
300-3400 Hz |
350-2500 Hz |
|
|
| Frequency stability |
< 1.0 ppm |
| Data ports |
RS232, RS485, SIP, NTP, 10/100 BaseT |
| Protocol |
SNMP, RTP, SIP, NTP, TCP/IP, HTTP, TFTP, DHCP and IPv6 |
| BITE monitoring |
VSWR, Voltages, Currents, Levels, Lock detect, Temperature, Output power, Reflected power, a.o. |
| Supply voltage, AC |
85 to 264VAC, 47-63Hz |
| Supply voltage, DC |
21.6 – 31.2VDC negative ground (reduced output power when DC input is below 27VDC on standard power supplies. Full output power down to 21.6VDC when using PSU-7007. No degradation of the receiver performance over the full DC voltage range |
| Start-up time |
< 6 sec |
| MTBF |
> 10 years / unit |
| MTTR |
< 30 minutes at lowest replaceable unit |
| |
|

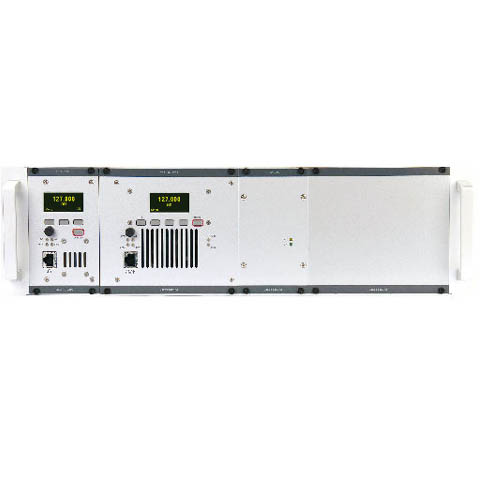

| Transmitter (TA-7650) |
AM 25 kHz |
AM 8,33 kHz |
AM MSK |
D8PSK |
| Output power |
1W to 50W,Adjustable in 0.1 dB step |
1-25W |
| Adjacent channel power |
> 70 dBc |
> 70 dBc |
> 70 dBc |
> 65 dBc |
| Modulation level |
up to 95% |
| Distortion |
< 2% @85% modulation, typically 0.5% |
| Line input |
600Ω, -36 – +10dBm |
| Intermodulation protection ratio |
-55 dBc (TA7650), -70 dBc (TA7650LN) |
| Tx timeout |
5 to 300 seconds in 5 seconds steps |
| Inband keying |
Configurable tones: (2000-4000Hz in 1Hz step) and threshold level (-40 to -10dBm) |
| Offset carrier |
2, 3, 4 or 5 for 25 kHz and 2 for 8.33 |
| Differential group delay |
|
< 60µs |
|
| Power rise and release time |
|
< 190µs, < 300µs |
| System constellation time |
|
EVM < 3% |
| VSWR |
1 : Infinity |
| Duty cycle |
100% continuous operation |
| Power consumption |
< 250VA |
| Dimension Transmitter unit |
142mm(28TE)(W) * 230mm(D) * 128mm (H), Weight 3.0 kg |
| Dimension PSU unit |
71mm (14TE)(W) * 303mm(D) * 128mm (H), Weight 1.3 kg |
