becker gk 415

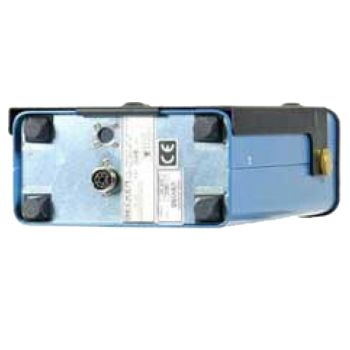

becker gk 415 reargk-415

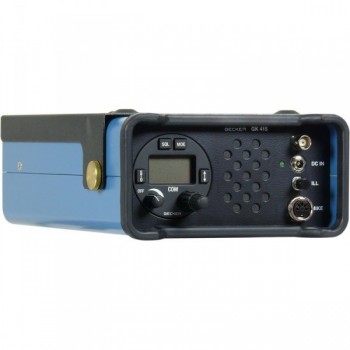

BECKER GK 415 MOBILE VHF TRANSCEIVER

5.00 dari 5
(1 review pelanggan)

The GK 415 is a rugged and reliable VHF air band base station.

With its new set of features the Becker GK 415 provides excellent durability and reliability in demanding operating environments, capable of being hand-carried in its durable bag, installed in any vehicle or fixed as a low base station.

The core of the GK 415 is the Becker FAA-certified AR 4201 airborne transceiver, featuring 760 channels, 118-137 MHz frequency range, 25 kHz channel spacing, sunlight-readable backlit LCD, SETUP menu, BITE functions and DC voltage indication.

Two versions of the GK 415 are available. The GK 415-(5) features a minimum of 5 watts RF output power and it is primarily used as a mobile/vehicle-mounted radio, while the GK 415-(10) features a minimum of 10 watts RFOP and is primarily used is as a base station although still keeping all of the mobile features.

The GK 415-(10) features as standard a 600 ohms recorder output and a remote control interface with Audio, PTT and RS 232 remote management capabilities. These two interfaces are optional for the GK 415-(5).

Both versions are capable of direct frequency entry via the front panel controls, and of 99 channel memories to ease access to preset frequencies, any of which can be then quickly activated via the Active/Preset button. Scanning of the 99 channels is standard function.

The GK 415 standard package includes a GK 415-(X) transceiver (with built-in speaker and battery), carrying bag, whip antenna, light-duty microphone and AC power adapter. Installation and removal of the GK 415 is quick and easy.

SKU: GK-415. Kategori: , .

Deskripsi Produk

General Data:

  • Frequency Range:
 118.000 – 136.975 MHz
  • Channel spacing:
 25 KHz
  • Number of channels:
 760
  • Memory channels:
 99, with scanning function
  • Operational mode:
 Simplex A3E
  • Power Supply:
 AC 115 … 230 V

DC 13,75 V (5 W. only)

DC 15 V
  • Temperature range

    Operational:

    Storage:

 – 15 … + 55 °C

– 40 … + 55 °C
  • Relative humidity:
 95 % at + 40 °C
  • Dimensions
 165 x 85 x 277 mm
  • Weight
 approx. 4 kg

Receiver Data:

  • Sensitivity:
 < 1.5 µV at 6 dB S+N/N, m = 0,3
  • IF Bandwidth, 6 dB:
 ± 8 kHz
  • Selectivity +/– 25 KHz:
 > 60 dB
  • Distortion:
 < 10 %
  • AF Frequency range:
 6 dB, 300 Hz … 2800 Hz

20 dB, 4000 Hz
  • AF Output Power:
 3 Watt into 4 ohms

Transmitter Data:

  • Output power:

    GK 415-(5) :

    GK 415-(10):

 > 5 W carrier power

> 10 W carrier power

(only with external 15VDC power supply adapter)
  • Depth of modulation:
 80 % … 95 %
  • Mod. Frequency range:
 300 Hz … 2800 Hz
  • Distortion:
 < 10 % @ 90% modulation
  • Total harmonic power:
 max 4 nW
  • Output impedance:
 50 Ohms
  • Mismatch load:
 Full power into 2.5:1 VSWR

Infinite VSWR without damage



 Features:

  • Recorder output, 600 ohms, 0 to -9 dB
  • Audio and PTT remote control
  • RS232 remote management interface

These features are standard with the GK 415-(10), and optional for the GK 415-(5).

Standard package includes:

GK 415 transceiver, light duty microphone, dry-lead-acid battery, AC adapter/charger, whip antenna, carrying bag.

Optional accessories:

  • Heavy-duty handheld microphone
  • Vehicle mounting bracket
  • Desktop microphone
  • Adapter cable w/pilot-headset jacks and PTT
  • RJ-11 recorder adapter cable
  • DC Adapter cable w/cigarette lighter plug
  • VHF base station antenna
  • Lightning protection
  • Coaxial cable and connectors

Certifications:

  • TSO – 2C37d, ED-23 A, Equipment Class 4
  • TSO – 2C38d, ED-23 A, Equipment Class C
  • EUROCAE/RTCA ED-14C/DO-160 C
  • EUROCAE/RTCA ED-12A/DO-178
  • BZT: A 107 417 D LB
  • LBA 10.911/87 JTSO
  • BZT A113272E, LO
  • DFS B-7847/94
