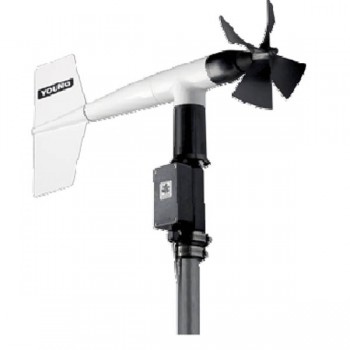

wind-monitor model 05103
wind-monitor model 05103

AWS Wind Monitor

1.00 dari 5
(1 review pelanggan)

The Wind Monitor is a high performance wind sensor. Rugged, corrosion-resistant construction makes it ideal for a wide range of wind measuring applications.

The wind speed sensor is a four blade helicoid propeller. Propeller rotation produces an AC sine wave voltage signal. The wind direction sensor is a rugged yet lightweight vane. Vane angle is sensed by a precision potentiometer. Constructed of UV stabilized plastic with stainless steel and anodized aluminum fittings, the sensor mounts on standard 1 inch pipe.



SKU: AWS-M-05103. Kategori: .

Deskripsi Produk

Specifications:
Range: 0-100 m/s (224 mph), 0- 360°
Accuracy:Wind Speed: ±0.3 m/s (0.6 mph) or 1% of reading, Wind Direction: ±3 °
Operating Temperature: -50 to 50°C
Threshold: Propeller: 1.0 m/s (2.2 mph) Vane: 1.1 m/s (2.4 mph)
Signal Output: Wind speed: magnetically induced AC voltage, 3 pulses per revolution. 1800 rpm (90 Hz) = 8.8 m/s (19.7 mph)
Wind direction: DC voltage from conductive plastic potentiometer − resistance 10K Ω, linearity 0.25%, life expectancy − 50 million revolutions
Power Requirement: Potentiometer excitation: 15 VDC maximum
Dimensions: 37 cm H x 55 cm L, Propeller: 18 cm dia. Mounting: 34 mm dia. (standard 1 inch pipe)
Weight:1.0 kg (2.2 lbs)
Shipping weight: 2.3 kg (5 lbs)
